Bypass Separators: Supplied, Installed and Fully Commissioned By Accredited Installers Your project managed from start to finish to take the hassle away from you!

Your project managed from start to finish to take the hassle away from you!

Let us take away the hassle of installing your Bypass Separator. Octane are an Accredited Kingspan Klargester Installer and will manage your project from supply to a fully commissioned Bypass Separator.

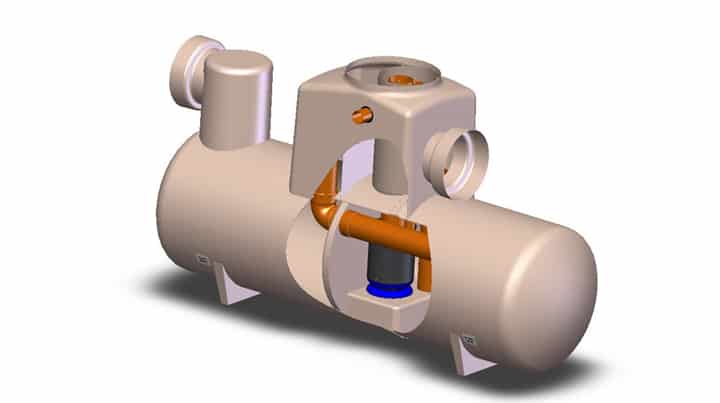

klargester-bypass-separator

  • Class I design.
  • Maintenance from ground level
  • Oil alarm system available (required by EN858-1 and PPG3)
  • All installation work is carried out in-house, no sub-contractors used. This includes any groundwork you require or removal of old interceptors.
  • Your project will be fully managed from start to finish to take the hassle away from you.
  • Highly trained team of accredited professionals with years of experience installing separators.
  • You will be kept up-to-date with project progress reports.
  • Future checks and maintenance is available to keep your refuelling site in-line with regulations

Tell us your requirements belowNote: sizing guide further down this page

What our clients say…

Just a quick mail to thank your staff for the great work completed at the depot. They were a pleasure to work with, professional, polite, conscientious, nothing was too much trouble. I would thoroughly recommend your team to any potential clients, they are a credit to you.  – Tom Kurzynski, General Manager

Additional Information

Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator.These separators are used when it is considered an acceptable risk not to provide full treatment for high flows, for example where the risk of a large spillage and heavy rainfall occurring at the same time is small.

Sizing Guide

Bypass Separators are basically sized on the drainage area in m2. See the table below:

Product CodeFlow (l/s)Peak Flow Rate (l/s)Drainage Area (m2)Storage Capacity (Ltrs)Storage Capacity (Ltrs)Length (mm)Diameter (mm)Access Shaft Diameter (mm)Base Inlet Invert (mm)Base to Outlet Invert (mm)Standard Fall Across (mm)Min Inlet Invert (mm)Standard Pipework Diameter (mm)
SiltOil
NSBP0033301670300451700135060014201320100500160
NSBP0044.5452500450601700135060014201320100500160
NSBP0066603335600901700135060014201320100500160
NSBE01010100556010001502069122075014501350100700315
NSBE01515150833515002252947122075014501350100700315
NSBE020202001111120003003893122075014501350100700375
NSBE025252501389025003753575142075016801580100700375
NSBE030303001667030004504265142075016801580100700450
NSBE0404040022222400060032301920600218520351501000500
NSBE0505050027778500075039601920600218520351501000600
NSBE0757575041667750011255841192060022352035200950675
NSBE1001001000555561000015007661192060022352035200950750
NSBE1251251250694441250018759548192060022352035200950750
